THE HEAVY DUTY REAR LOADER

HEAVY DUTY REAR LOADER

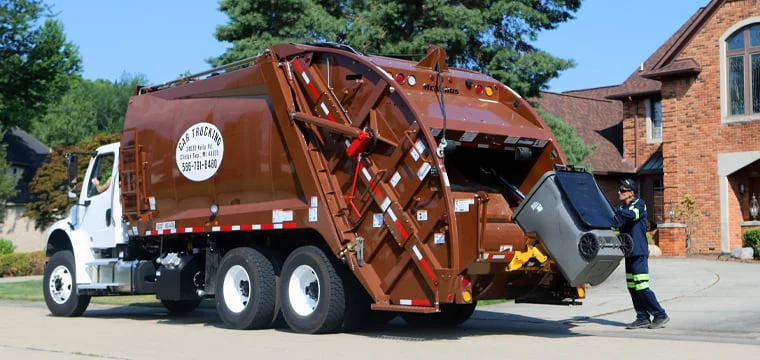

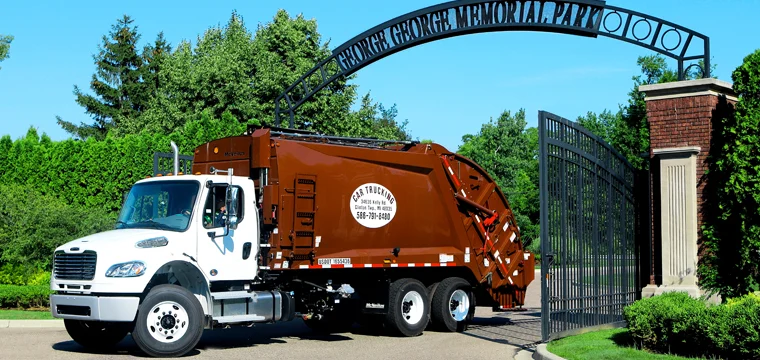

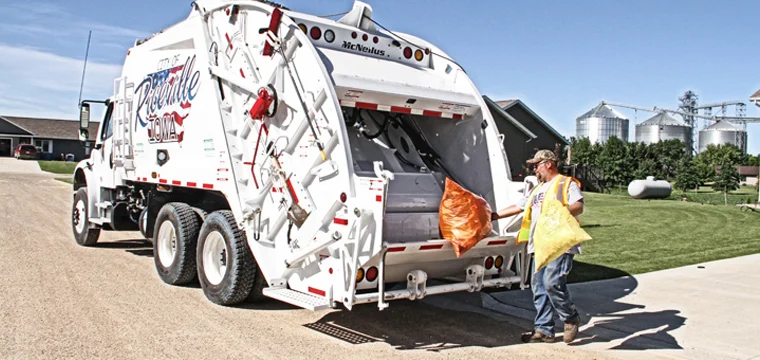

The McNeilus Heavy Duty (HD) Rear Loader is engineered for reliability and built to tackle the toughest jobs, including demanding commercial applications. While it shares the dependable performance of our Standard Rear Loader, the HD model offers enhanced compaction capabilities to efficiently manage heavy refuse loads.

With the ability to crush up to 1,000 pounds of refuse into the standard 3-cubic-yard hopper, the HD Rear Loader is designed to handle longer routes with ease. Its quick pack cycle ensures the hopper remains clear, allowing for faster operations on densely populated routes. For those requiring even greater capacity, a larger 3.5-cubic-yard hopper is also available.

Compaction & Performance
  • Compaction: 1,000 lb/yd³
  • Fast pack cycle with pack-on-the-go hydraulics
  • Dump Cycle: 16 sec
  • Sweep Extend/Retract: 4 sec / 2 sec
  • Slide Extend/Retract: 3 sec / 7 sec
  • Tailgate Open/Close: 30 sec / 18 sec
Hopper & Ejector Specs
  • Hopper Capacity: 3 yd³
  • Hopper Floor: 1/4″ AR200 steel
  • Ejector Cylinder (20–32 yd³): 3–5 stage configurations
  • Slide/Sweep/Tailgate Cylinder specs vary by size
Body & Tailgate Specs
  • Body Floor: 3/16″ AR200
  • Sidewalls: AR200 front / AR450 rear
  • Tailgate Walls: 3/16″ AR200
  • Wear Strips: 1/2″ x 3″ 1044 steel
  • Tailgate Seal Height: 50 in.
Hydraulics & Cylinders
  • Pump: Single gear or vane w/ pack-on-the-go flow
  • Oil Reservoir: 40–50 gal depending on model
  • Control Valves: Parker VA35 with Smart-Pak®
  • Filter: Parker 40 CN, 100 mesh suction strainer
Popular Options
  • Spool Winch or Reeving Cylinder
  • Guides and Latches
  • Container Lift Bar
  • Excalibre™ Packing Cylinders (optional)
Highlights & Warranty
  • USA Made – High resale value
  • Painted w/ PPG high solids urethane topcoat
  • McNeilus CNG system compatible
  • Warranty info available on request

Key Features of McNeilus Heavy Duty Rear Loaders

  • Enhanced Compaction: Capable of crushing up to 1,000 pounds of refuse into a standard 3-cubic-yard hopper for efficient handling of heavy loads.
  • Extended Route Capability: Designed to run longer routes without compromising performance, making it ideal for high-demand applications.
  • Quick Pack Cycle: Rapid compaction ensures the hopper stays clear, saving valuable time on densely populated routes.
  • Optional Larger Hopper: Available with a 3.5-cubic-yard hopper for increased capacity to accommodate larger refuse volumes.
  • Robust Construction: Built for durability and reliability, ensuring consistent performance in commercial and challenging collection environments.

Quick Connect

Want more information?

McNeilus Heavy Duty Body

Description

20 YD³ (15.3 m³)

25 YD³ (19.1 m³)

28 YD³ (21.4 m³)

32 YD³ (24.5 m³)

(A) Overall Length, Tailgate Closed

246 in.
6248 mm

278 in.
7061 mm

297 in.
7544 mm

322 in.
8179 mm

(B) Overall Length, Tailgate Raised

262 in.
6655 mm

294 in.
7468 mm

313 in.
7950 mm

338 in.
8585 mm

(C) Overall Height, Tailgate Closed**

99 in. / 2515 mm (all sizes)

(D) Overall Height, Tailgate Raised**

150 in. / 3810 mm (all sizes)

(E) Inside Hopper Width

80 in. / 2032 mm (all sizes)

(F) Hopper Opening Height

57 in. / 1448 mm (all sizes)

(G) Overall Width w/ Steps

102 in. / 2591 mm (all sizes)

Overall Width w/o Steps

96 in. / 2438 mm (all sizes)
